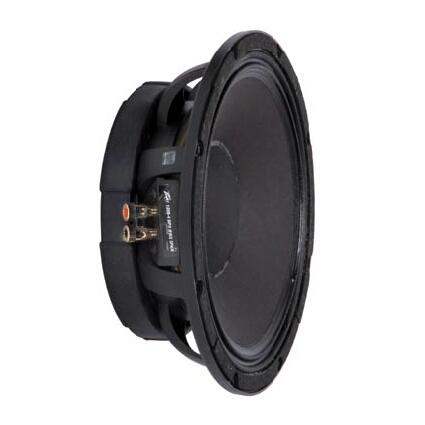

1208-4 SPS BWX

560780

---

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Login To Order

Overview

Product Type: Speakers

Peavey Part Number: 00560780

Product It Fits: Impulse 1012 4 Ohm, Impulse 1012 Sub Black, Impulse 1012 Sub White, Impulse 1012P, Impulse 200 Sub 4 Ohm, Impulse 200 Sub White, Impulse 200P

Sensitivity: 96.6 dB / 1W 1m

Voice Coil Cooling: na

Net Weight: 16 lbs / 7.3 kg

Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension

Nominal Impedance: 8 Ohms

Minimal Impedance: 7.1 Ohms

DC Resistance: 6.8 Ohms

Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1000 Hz

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H

Horn Coupling Diameter: na

Horn Coupling Threads: na

Shipping Weight: Standard: 25 lbs / 11.4 kg

Diaphragm Kit: 377380

Power - Peak: 2000W

Power - Program: 1000W

Power - Continuous: 500W

Frequency Range: 50 Hz - 3.5 kHz

Voice Coil Diameter: 4.0" / 100mm

Voice Coil Material: Aluminium ribbon wired; Plyimide-impregnated fibreglass former Nomex stiffened; OFHC copper leads

Znom (ohms): 4.000

Revc (ohms): 3.470

BL (T/M): 14.090

Vas (Litres): 66.200

Cms (uM/N): 172.500

Mms (gm): 47.900

Qms: 7.090

Qes: 0.311

Qts: 0.298

Xmax (mm): 2.300

Le (mH): 0.190

SPL (1W 1m): 96.600

No (%): 2.900

Vd (cu. in. /ml): 18.4 / 302

Pmax (Watts pgm): 1000.000

Disp (cu. In. / ml): 109 / 1797

Replacement Basket: 560790
