Aguilar DB 316 Mid-EQ Pedal

DB316

Skip to the end of the images gallery

Skip to the beginning of the images gallery

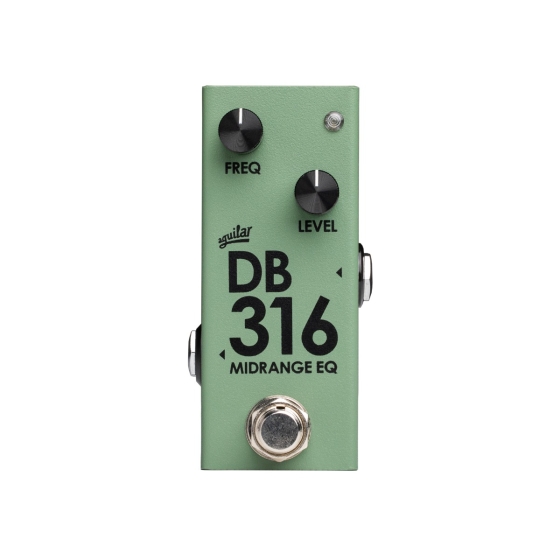

Getting to know the DB 316 Midrange EQ Pedal

Overview

The DB 316 is a Midrange EQ pedal based on the preamp of the acclaimed Tone Hammer Series to perfect your midrange tone. Ideal for basses with two-band preamps and passive instruments where nailing the midrange is key, the DB 316 is flexible and intuitive. It can be an always-on EQ for every situation or a convenient tool for quickly switching to a second EQ setting when you want to switch up playing styles.

The DB 316 utilizes a micro-sized steel chassis, making it a welcome addition to even the tightest of pedalboards.

The DB 316 utilizes the sweepable midrange control from the Tone Hammer family of amps and pedals. With a sweep range from 180 Hz to 1 kHz and a gain control providing you 17db of boost or cut, the DB 316 give you ultimate control over your midrange frequencies.

Specifications

Freq - Sweepable midrange frequency control. The range is from 180Hz to 1kHz.
Level - + / - 17dB of boost or cut
Inputs: One 1/4″ jack
Outputs: One 1/4″ jack

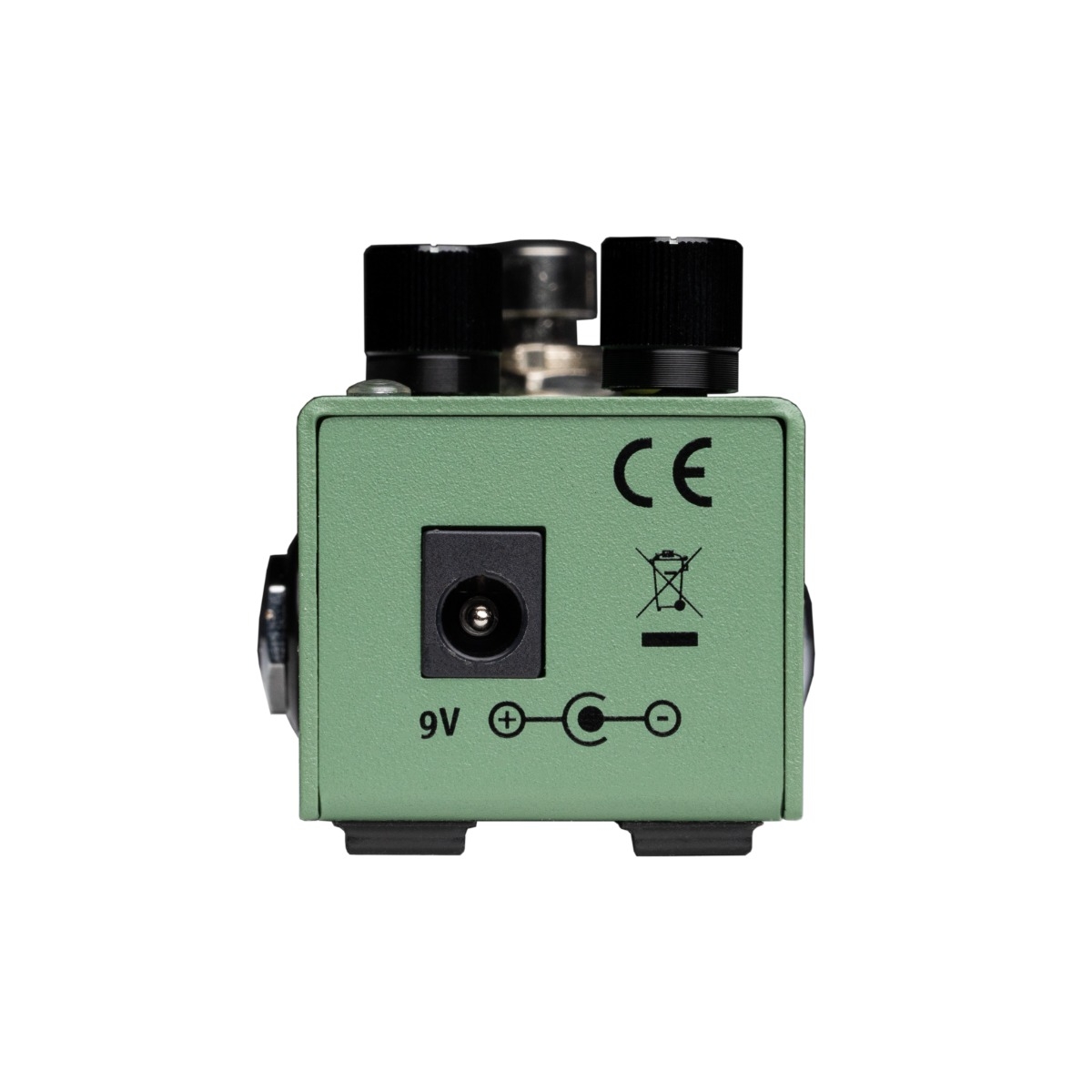

Power: Nine-volt DC
Construction: Heavy duty steel construction

Specification

Commodity Code	8543709099
Manufacturer	Aguilar
Country of Origin	USA
Barcode	824599002050

Packaged Weight & Dimensions

Height (CM)	10
Width (CM)	18
Depth (CM)	18
Weight (Kg)	0.8
