Aguilar OBP-3 Preamp 3 Band Boost / Cut - Separate Toggle

OBP3TK

---

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Login To Order

Overview

Aguilar preamps have high headroom, low distortion and the ability to reproduce the full dynamic range of your instrument. Get the “Aguilar Sound” onboard your bass in an affordable, easy to install package. A great upgrade for any bass!

OBP3TK: Includes separate Treble, Mid, and Bass pots, and black mini-toggle switch for Midrange frequency selection

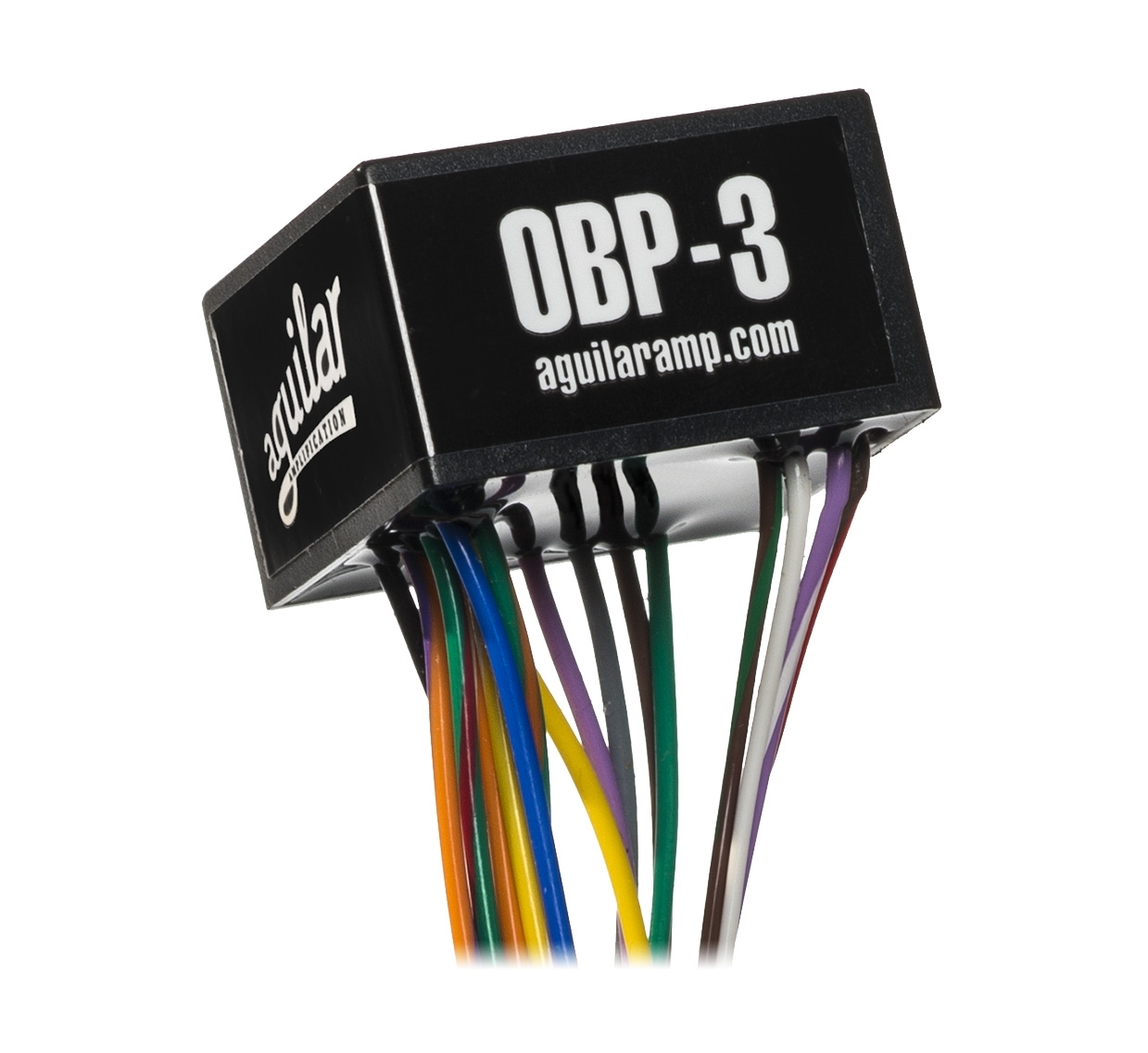

OBP-3 Preamp: 3 band, boost / cut. 9 or 18 volt on board preamp.

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.

• Bass control: plus/minus 18 dB @ 40 Hz
• Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center
• Treble control: plus/minus 16 dB @ 6.5 KHz
• Input impedance: 1 meg ohm
• Output impedance: 100 ohm 9 or 18 volts operation
• Distortion: .019 into 10k ohm load
• Noise: -95 dBm unweighted
• Battery life: 324 hours
• Wire lead length: 6.50 inches
• Low noise discrete FET input stage, center detent 50 K linear pots,with a dual concentric pot available
• Dimensions: 0.98″W x 0.98″L x 0.59″D
