Peavey Classic 20 112 Combo

PVC20112C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Introducing the new Peavey Classic 20 112 Combo with an all-tube preamp and power amp, providing the distinctive sonic punch of the larger, iconic amplifiers on which it is based, but in a more compact footprint weighing significantly less. This latest addition brings new life into the legendary product line by now providing players that iconic tone in a package better accommodating to today's smaller stage and bedroom performances.

Boasting two channels that mirror the same voicing and gain structure of its bigger Peavey amplifier siblings, in addition to a specially designed boost function, the Classic 20 112 Combo is a versatile, powerful unit that is equally suitable to virtually all musical styles.

Two EL84 power tubes and three 12AX7/ECC83 preamp tubes deliver the rich, warm tube-amplifier tones that are so sought after by players and engineers. Each of the Peavey Classic 20 112 Combo's channels shares EQ, an effects loop, and reverb (all footswitchable), while the amp's rear panel features MSDI™ (Microphone Simulated Direct Interface) with XLR output and USB out, 3-position power attenuator switch allowing for 20 watt, 5 watt or 1 watt operation, and speaker defeat switch.

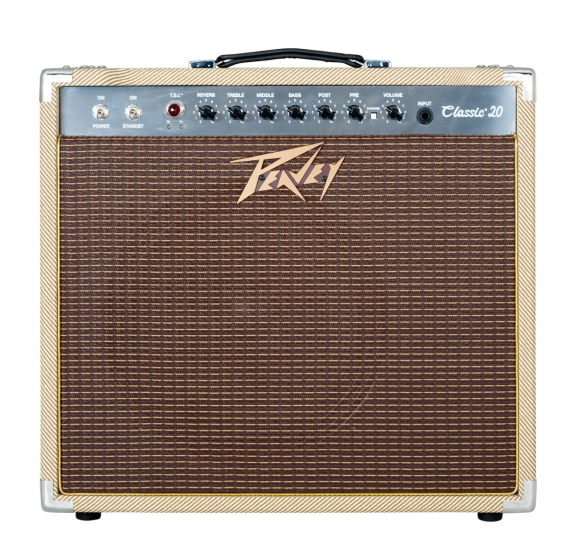

The Classic 20 112 Combo's front panel includes a ¼" Input jack, Volume knob, Channel switch for selection of 'Lead' or 'Rhythm' channels, Pre-Gain to control the input level of the lead channel (i.e. overdrive and gain), Post Gain to balance the sound between the two channels, Bass, Middle, & Treble EQ controls, Reverb to dial in the amount of ambience, a Pilot Light indicating when AC power is being supplied and the Classic 20 112 Combo's Power Switch is in the "ON" position, Standby switch, and T.S.I.™ (Tube Status Indication) LEDs that illuminate red or green, depending on the status of the output tube they are monitoring.

The Peavey Classic 20 112 Combo: genuine tube power and tone - no emulations or simulation - in a smaller, more manageable package and at an attainable price point.

Features
• 20 Watts (RMS) into 16 or 8 ohms
• One 12" Peavey Sheffield 1230+ 16 ohm speaker
• Two EL84 power tubes
• Three 12AX7/ECC83 preamp tubes
• Two footswitchable channels with shared 3-band EQ
• Pre- and post-gain controls on lead channel
• Normal volume control on clean channel
• Reverb with level control
• Standby switch
• Tube Status Indication (T.S.I.) circuit
• Attenuator switch for 20 watts, 5 watts or 1 watt output power
• MSDI output with XLR and ground lift switch
• USB output
• Speaker defeat switch
• Headphone output
• Effects loop
• Impedance switch for 16 or 8 ohm cabinets
• External speaker capability
• Footswitchable volume boost on both channels
• Footswitchable reverb
• Footswitchable buffered effects Loop
• One footswitch included
• Footswitch is Peavey part number 03620960
• Chrome-plated chassis
• Classic tweed covering
