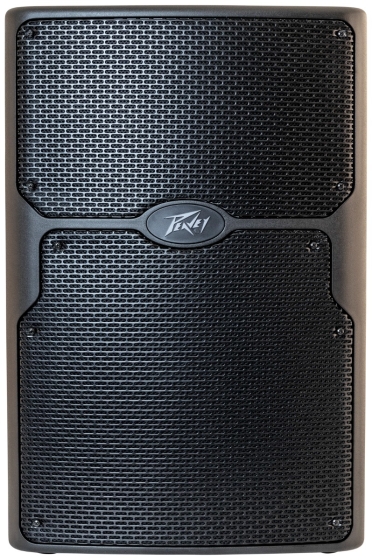

Peavey PVXp BT Bluetooth 12" Powered Loudspeaker

PVXP12BT

---

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Login To Order

Overview

The PVXp™ 12 Bluetooth® features a reliable bi-amped power section that provides a total of 980 Watts of peak dynamic power with DSP based compression and limiting. This enclosure features a 12” heavy-duty woofer with a 2 3/8 inch voice coil and 50 ounce magnet, and the RX™14 compression driver with a 1.4 inch titanium diaphragm on a 100 degree horizontal x 50 degree vertical pattern asymmetrical horn.

The PVXp 12 Bluetooth provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4 inch input as well as a balanced XLR input. A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8” AUX input jack. Each channel has an adjustable level control and a three-band EQ section. There is a balanced output, a male XLR, that can feed the mixed signals from the three channels out to another component.

A front baffle LED indicator that can be set to light when power is on, and when the “soft-limiting” DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters are accessed via a one-knob selector.

Features

· Two-way bi-amped sound reinforcement enclosure
· 12" heavy-duty woofer with a 2-3/8" voice coil & 50 oz. magnet
· RX 14 compression driver, with 1 inch titanium diaphragm
· Reliable fan-cooled power amps with DSP protection
· Total of 980 Watts peak dynamic power
· DSP control for precise crossover, EQ and limiting functions
· Bluetooth input is via a dedicated input channel
· Mix/Thru output is via a male XLR jack
· Durable plastic injection-molded trapezoidal enclosure
· Extra angled section on right side allows floor monitor use
· Pole mount molded-in for 1 3/8” diameter poles
· Top and bottom flying point inserts
· Full-coverage heavy-duty perforated steel grilles, with powder coat finish
· DSP I/O is at 48 kHz and 24 bits, internal processing is 56 bit double-precision
· Peavey’s Quadratic Throat Waveguide™ technology, 100 by 50 degree coverage
· Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads
· Analog input is via a combo female XLR and 1/4” TRS phone jack with balanced input
· Three channels in total, two for analog, and one for Bluetooth or AUX input via a 1/8” jack
· Each channel has a level control and a 3-band EQ
· iOS® Bluetooth Control App for iPhone® & iPad®

Dimensions (HxWxD)
· 24.5” (622 mm) x 16.1” (409 mm) x 15” (381 mm)

Weights
· 42 lbs (19.10 kg)

Specification

Packaged Weight & Dimensions
