Overview

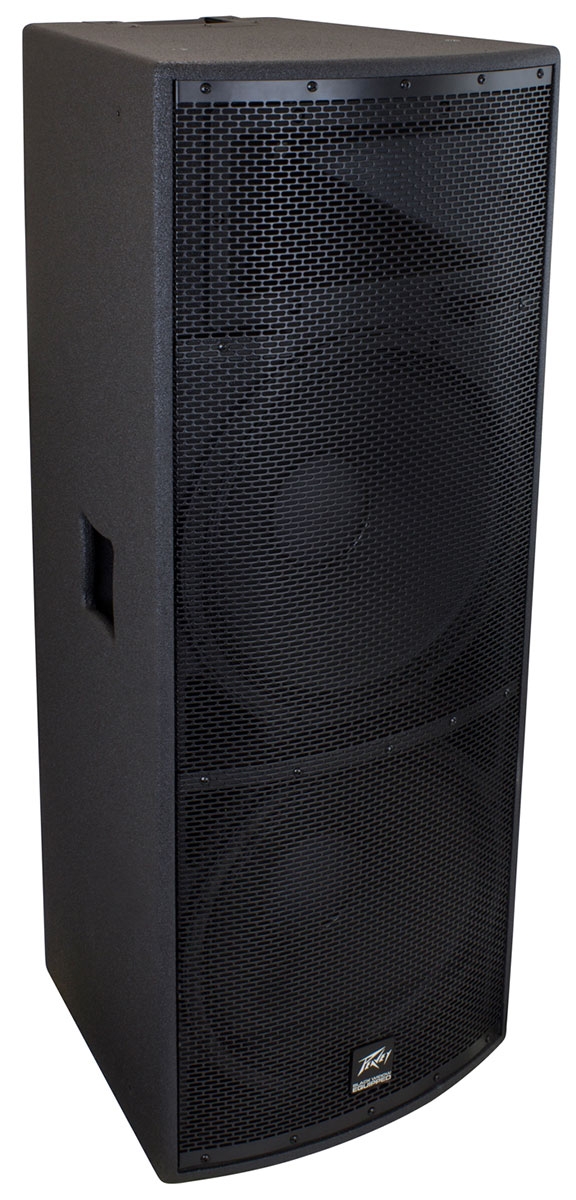

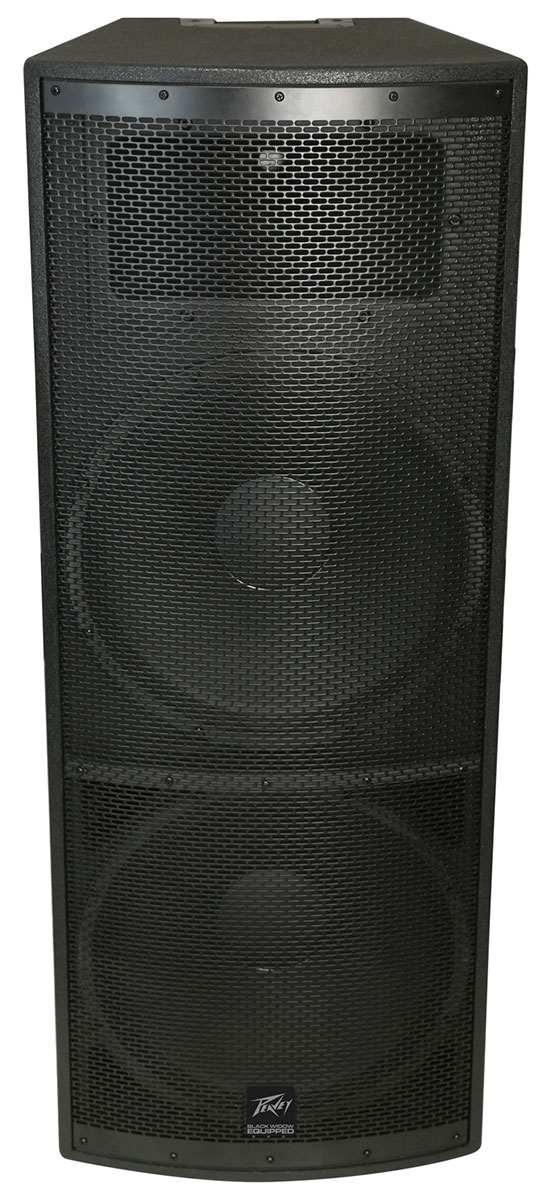

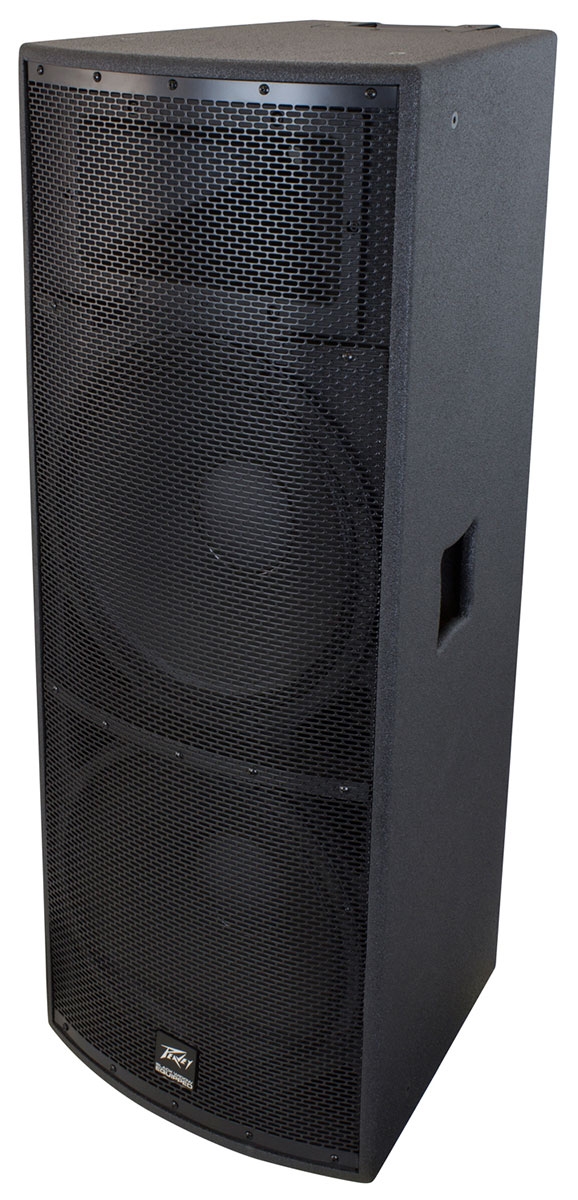

The SP® 4 quasi-three-way, full-range/bi-ampable Sound Reinforcement system features two premium 15" BWX Black Widow® 4" diameter VC woofers with field-replaceable baskets, RX™ 22CT compression driver, and Sound Guard™ III tweeter protection.

Engineered for optimal sound reproduction with proven reliability, Peavey SP enclosures feature exclusive asymmetrical Quadratic Throat Waveguide™ technology that deliver pristine, precise sound. Asymmetrical horn aims the coverage pattern 15° upward and 35° downward.

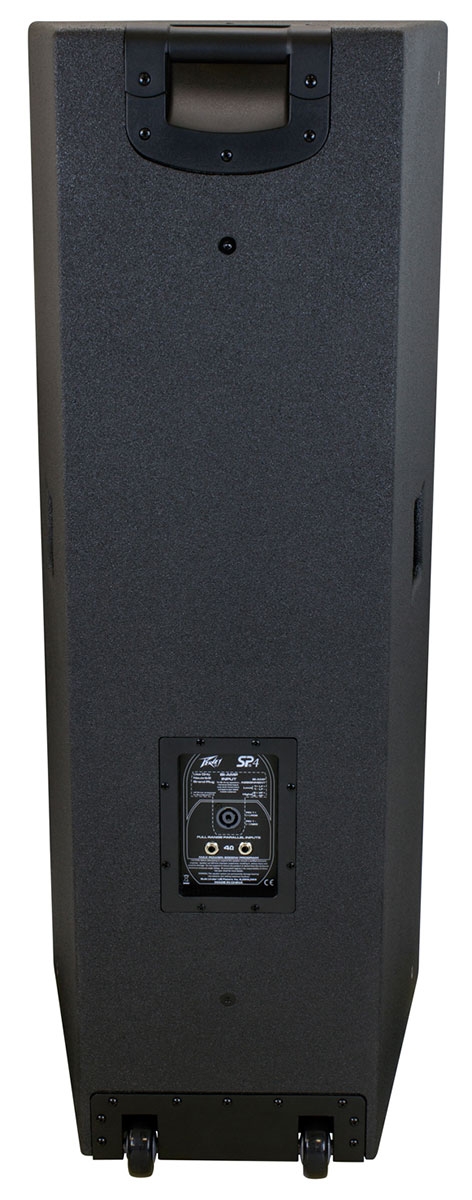

Quasi-three way, full-range/bi-ampable Sound Reinforcement system • 69Hz to 17kHz • Two 15” BWX Black Widow® 4” diameter VC woofers • Exclusive Quadratic Throat Waveguide™ technology • 2,000 watts program, 4,000 watts peak • Two 15” BWX Black Widow® 4” diameter VC woofers • Full-range inputs include two 1/4” phone jacks, one four-pin, twist lock connector & one Neutrik NL4 Speakon switching jack (bi-amp only) • Asymmetrical horn aims the sound down 10° • Full length black powder coated metal grille • RX™22CT compression driver • M8 threaded mounting suspension points (3 top, 3 bottom and 2 each side & 1 each top rear and bottom rear) • Sound Guard™ III tweeter protection • Four large rubber feet on bottom for floor use • Trapezoidal plywood finished in black textured paint.

Dimensions Packed (HxWxD): 49” (1250mm) x 22” (550mm) x 20” (510mm) • Weight: 100lb (45.3 kg)

Specification

---

Packaged Weight & Dimensions

Height (CM)	54.99
Width (CM)	51.00
Depth (CM)	124.99
Weight (Kg)	44.5

---
