Overview

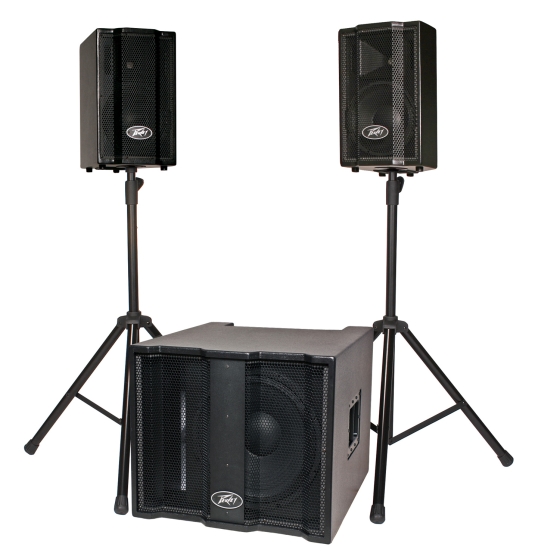

The TriFlex® II is a three-piece, 2-channel sound system, already tweaked and ready to go for sound reinforcement, DJ gigs, and more music playback duties. Featuring a cabinet with a premium 15" woofer plus a pair of two-way satellite speakers with a 10" heavy-duty woofer and a RX™14 titanium diaphragm dynamic compression driver mounted on a 75° by 75° coverage Quadratic Throat Waveguide™ horn. The TriFlex II features a bi-amped power section that provides 500 watts peak power for the subwoofer and 250 watts peak power for each satellite speaker. Input jacks provided are a balanced input XLR and a 1/4" phone combo jack, with a pair of RCA phono jacks available, and a master volume control and a sub volume control. The Subwoofer cabinet includes 15" heavy-duty woofer as well as a preamp, electronic crossover, subsonic filter, and three power amps. Equipped with 3" heavy-duty locking casters, the subwoofer cabinet can be rolled around with the two satellite speakers secured on top. Once it's in position, you can remove the satellite speakers, flip the subwoofer over 90° onto its rubber feet, and the electronics controls and inputs and outputs are now readily available on the top at the rear of the subwoofer cabinet. (Speaker stands sold separately) 1,000W active 2-channel speaker system • One shared subwoofer cabinet houses the inputs and power amps • Dual two-way satellite speakers with pole stand adapters • Subwoofer has 15" woofer with 500W peak available power • Satellite speakers have 10" woofer and RX™14 1.4" compression driver • 250W peak available power to each satellite speaker • Peavey’s DDT™ compression on the satellite power amps • System comes with two 15’ speaker cables • Protective slipcover with cable storage pockets and built-in Velcro retaining straps • Heavy-duty locking casters on subwoofer cabinet for transport of system • Satellite speakers fit on top of the subwoofer for easy transport • Four-pin twist-lock connectors on amplifier outputs and satellite inputs. Complete System: Dimensions (HxWxD): 43" x 20.4" x 23.5" / 1092mm x 517mm x 598mm / Weight: 146lbs / 66.2kg Subwoofer: Dimensions (HxWxD): 19.7" x 28" x 28.1" / 499mm x 711mm x 714mm / Weight: 25lbs / 11.3kg Satellite Speakers: Dimensions (HxWxD): 19.6" x 11.83" x 11.83" / 498mm x 300mm x 300mm / Weight: 24lbs / 10.9kg

Specification

---

Packaged Weight & Dimensions

Height (CM)	62.23
Width (CM)	77.47
Depth (CM)	134.62
Weight (Kg)	89.7

---
