Overview

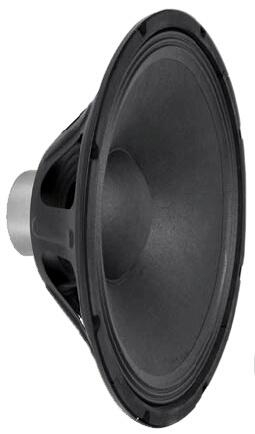

Product Type: Speakers

Peavey Part Number: 00497080

Product It Fits: PR 15 Sub, PV 115, PV 215, PVX 15, PVXp 15, PR 15

Sensitivity: 96.4 dB / 1W 1m

Voice Coil Cooling: na

Net Weight: 10.4 lbs / 4.7 kg

Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension

Nominal Impedance: 8 Ohms

Minimal Impedance: 7.1 Ohms

DC Resistance: 6.8 Ohms

Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1000 Hz

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H

Horn Coupling Diameter: na

Horn Coupling Threads: na

Shipping Weight: Standard: 25 lbs / 11.4 kg

Diaphragm Kit: 377380

Power - Peak: 800W

Power - Program: 400W

Power - Continuous: 200W

Frequency Range: 40 Hz - 3 Hz

Voice Coil Diameter: 2.5" / 63mm

Voice Coil Material: 2 layers, thermally bonded copper wire; Kapton former Nomex stiffener

Znom (ohms): 8.000

Revc (ohms): 6.000

BL (T/M): 13.350

Vas (Litres): 331.600

Cms (uM/N): 324.600

Mms (gm): 66.500

Qms: 3.580

Qes: 0.482

Qts: 0.425

Xmax (mm): 2.500

Le (mH): 0.740

SPL (1W 1m): 96.400

No (%): 2.400

Vd (cu. in. /ml): 26.1 / 428

Pmax (Watts pgm): 400.000

Disp (cu. In. / ml): 131 / 2154

Replacement Basket: na
